DY-GZ Dry Air Supply Unit

◇ Product Introduction ◇ Product Features◇ Technical Indicator

[Product Introduction]

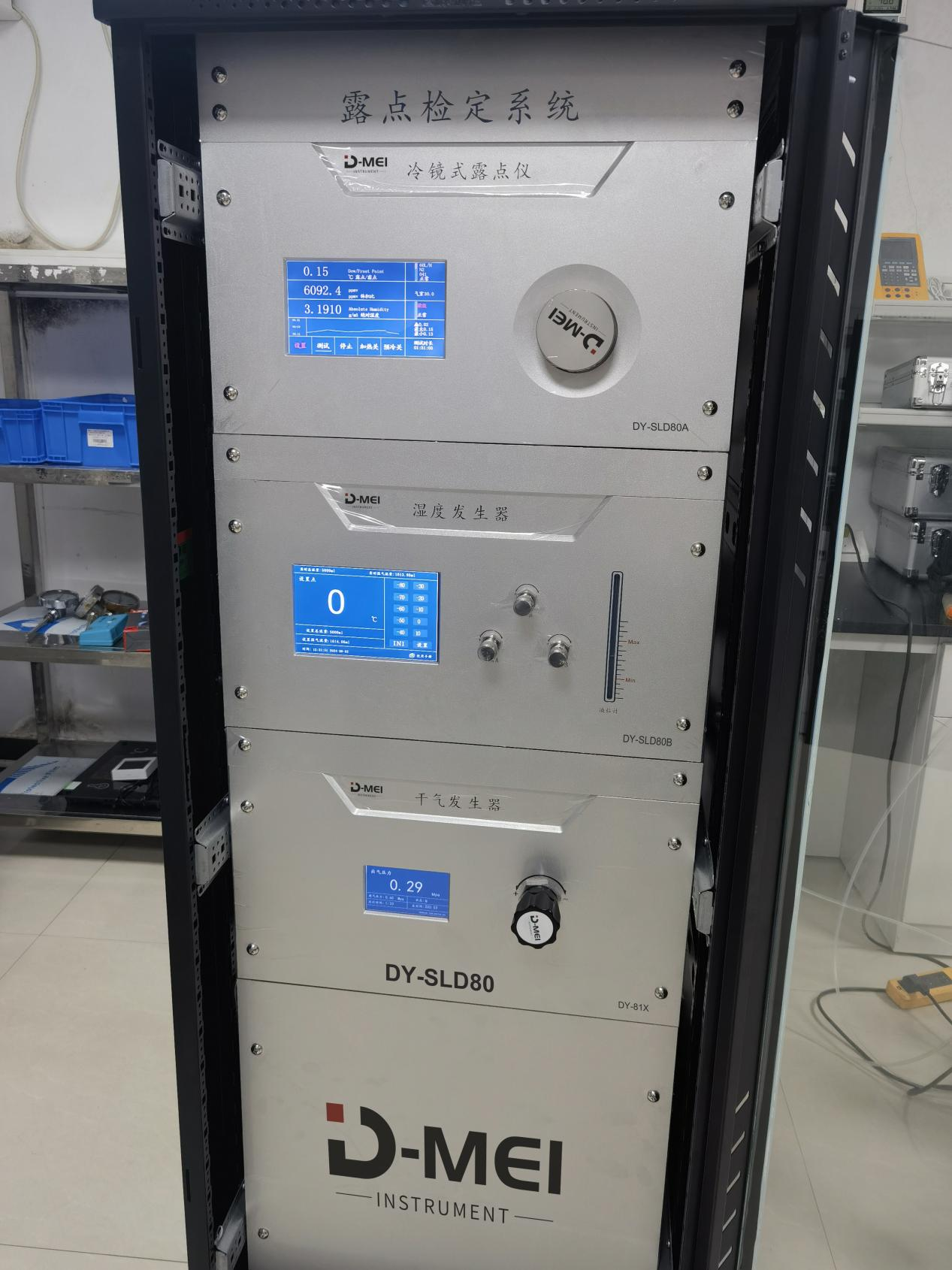

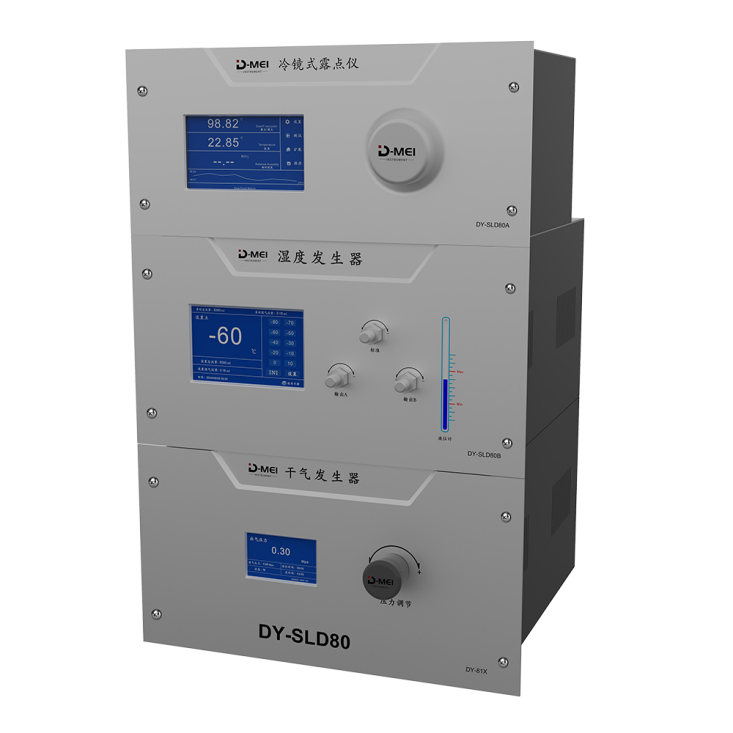

DY-SLD80，The dew point generator in this system realizes dew point adjustment based on the principle of shunt method. Gases with different dew point temperatures can be obtained through different ratios of dry and wet air flows. This method can use multi-stage split matching according to actual needs to generate the desired dew point value gas source. Our company provides a super dryer that can reduce the dew point to below -60°C (-80°C) and provide a drying air source, so the dew point value can be adjusted arbitrarily between -60°C (-80°C) and 20°C. , and can achieve fully automatic and rapid control.

[Technical Indicator]

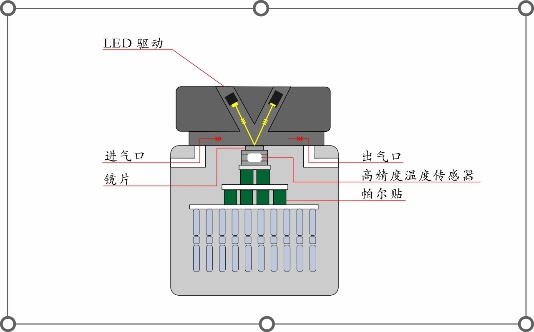

1. Technical parameters of precision dew point meter:

1.1 Dew point range: -80℃ to +20℃dp

1.2 Accuracy: ±0.2℃ dew point; ±0.1℃ temperature

1.3 Mirror surface: gold-plated copper

1.4 Repeatability: 0.05℃

1.5 Contamination compensation system: Automatic optical path balance system DCC

1.6 Temperature probe: 4-wire Pt100,1/10 DIN class B

1.7 Pressure range: 1Mpa

1.8 Sample gas flow: 0～2.4L/min

1.9 Display: flow rate, dew point temperature measurement and display

1.10 Output: Serial communication R232

1.11 Refrigeration method: semiconductor + Stirling dual refrigeration, no additional refrigeration module required

2. Technical parameters:

2.1. Technical indicators meet JJG826-93 "Secondary Standard Shunt Humidity Generator"; meet JJF1272-2011 Resistance-Capacitance Method Dew Point Hygrometer Calibration Specifications

2.2. Principle of humidification: Principle of split flow method

2.3. Power supply: AC 220V/50Hz

2.4. Working environment temperature: +5℃~+40℃

2.5. Working environment humidity: 10%RH~85%RH

2.6. Dry gas generator

Minimum frost point/dew point: -85°C(dp)

Output flow: 0...10L/min

2.7. Humidity generator

Occurrence range: -80℃～+10℃ (dp)

Fluctuation: < ±0.1°C (dp) within 30 minutes

Accuracy: < ±0.1°C (dp)

Output flow: 0～3L/min each channel

Display: true color touch LCD screen

Operation: Multiple presets are available, and the operation process is simple

Air connection: 1/4’ stainless steel ferrule connector

Output flow adjustment: high-precision stainless steel flow adjustment valve

Saturator water level: front panel scale indication
