DY-HTX5 Thermal Imaging Miniature Blackbody Furnace(Indoor temperature +5℃-45℃)

DY-HTX5 Thermal Imaging Miniature Blackbody Furnace

DY-HTX5 Thermal Imaging Miniature Blackbody Furnace(Indoor temperature +5℃-45℃)

◇ Product Introduction ◇ Product Features◇ Technical Indicator

[Product Introduction]

DY-HTX5 thermal imaging matching miniature blackbody radiation source for measuring human body (room temperature +5℃-45℃) is a thermal imaging matching miniature blackbody radiation source independently developed and produced by Taian Demei Electromechanical Equipment Co., Ltd.

The product is small in size, light in weight, easy to be installed on the front end of the thermal imaging camera, and can be integrated with the camera when leaving the factory to deliver the power and use, avoiding the traditional black body complex installation and debugging work.

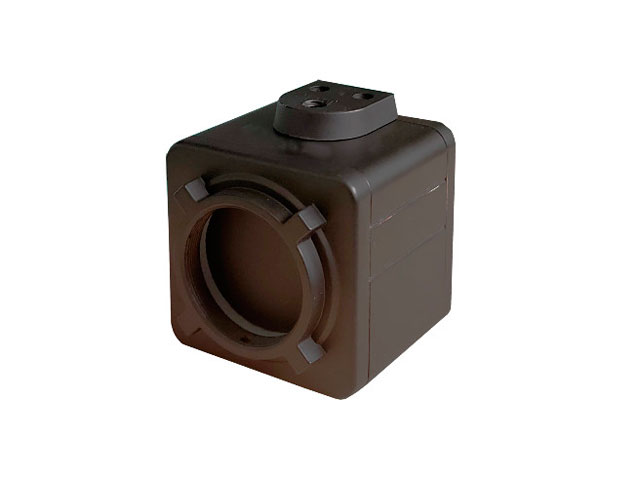

DY-HTX5 Thermal Imaging Miniature Blackbody Furnace

[Product Features]

1, more portable, more light. More precision.

2, light weight: black body unit <199 grams.

3. No need to operate when the factory setting of temperature is powered on. Rapid heating/temperature control.

4, small size: black body unit size 50*52*50mm.

5, Compared with the same type of products at home and abroad, it has good performance, excellent price and high cost performance.

[Technical indicators]

ModelDY-HTX5
Temperature RangeIndoor temperature +5℃~45℃
Control ModePID Automatic Control
Temperature resolution0.1℃
Radiant surfaceΦ30mm
Emissivity≥0.95
Temperature stability±(0.1~0.2)℃/10min
Temperature Uniformity±0.2℃(2/3 in the central area)
Power SupplyEquipped with 220V power adapter or own 5V, 2A USB universal charging head
Dimension(L×W×H)50mm×52mm×50mm
Working environmentTemperature: 0℃~30℃ Humidity: ≤60%RH
WeightBlackbody unit<199g

DY-HTX5 Thermal Imaging Miniature Blackbody Furnace

Precautions: The default fixed temperature point of this equipment is 40℃. When purchasing, communicate with the sales manager about the fixed temperature point in time. The fixed temperature point can be customized before leaving the factory, but cannot be adjusted after leaving the factory.
