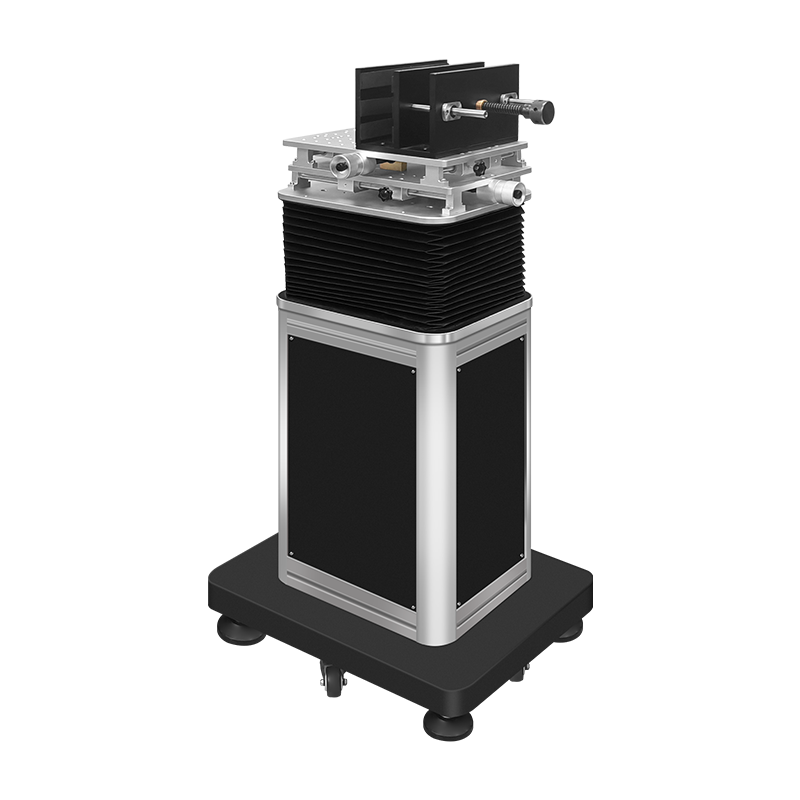

DY-HTJ Special Infrared Aiming Device for Blackbody Furnace


◇ Product Introduction ◇ Product Features◇ Technical Indicator

[Product Introduction]

DY-HTJ special infrared aiming device for blackbody furnace/infrared radiation thermometer mobile bracket/Blackbody furnace calibration mobile bracket is used to fix a variety of infrared instruments and meters platform and used for large stroke, non-quantitative lifting adjustment.

1. Provide stable moving lifting platform, providing precise fine tuning of horizontal and height direction

2. Provide accurate positioning for the detection of infrared thermometers and other radiation equipment

3. It adopts refined lead screw drive and five-axis positioning mechanism to ensure absolute stability, comfort, high precision and large load bearing

4. Porous design, strong applicability, can be used as the installation surface

5. Flexible movement, strong and durable, equipped with locking handwheel, safe and reliable

6. The mesa has the connecting hole with the standard hole spacing, which is convenient to combine with all kinds of infrared instruments and meters

[Technical indicators]

1. Overall size: 340*260*980mm (upper limit size)

2, table panel: 300*220mm

3, Worktable stroke: X=100mm Y=70mm Z=260mm

4, upper limit height: 980mm, lower limit height: 700mm

5. Installation hole: M6

6, hole spacing: 25mm

Matching device: infrared radiation thermometer fixed equipment (multiple optional)
